Non-evaporable Getters for lighting-ER707Y/S/ series

Short Description:

ER707Y-2 new non-evaporable getters are made through presing Zr alloy powder in metal plate,and they are good at absorbing certain cathode harmful gas in lamp,like H2 etc. This series are especially suitable for vacuum devices where evaporable ones are prohibited from using,or they can be used together with evaporable ones to increase gttering effects.these getters are good choices for high intensity gas discharging lamps,high-intensity switch tubes,gas purifiers,stainless steel vacuum bottles.ER707Y-2 getters can be activated by means of highfrequency induction,electrical heating,radiation heating or laser heating.


Product Detail

Product Tags

Dimension

Type

A(mm)

B(mm)

H(mm)

C(mm)

Efficient Area(mm2)

Weight(mg)

ER707Y/S/6X2/20

13.2

7.2

2.5

0.55

56

255

ER707Y/S/8X2/20

15

9.0

2.4

0.55

100

450

ER707Y/S/6X3/20

15.4

7.2

3.4

0.55

56

335

ER707Y/S/10X2/20

20

11.5

2.4

0.55

157

710

ER707Y/S/10X3/20

20

11.5

3.3

0.55

157

910

Technical Characteristics

Recommended Active Condition (When the pressure is below 1Pa)

TEMPUTURE

400℃

500℃

TIME

15MIN

10MIN

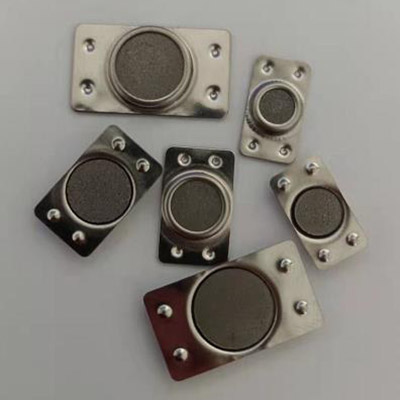

Non-evaporable Getters for lighting-ER707YS series (1)
Non-evaporable Getters for lighting-ER707YS series (2)
